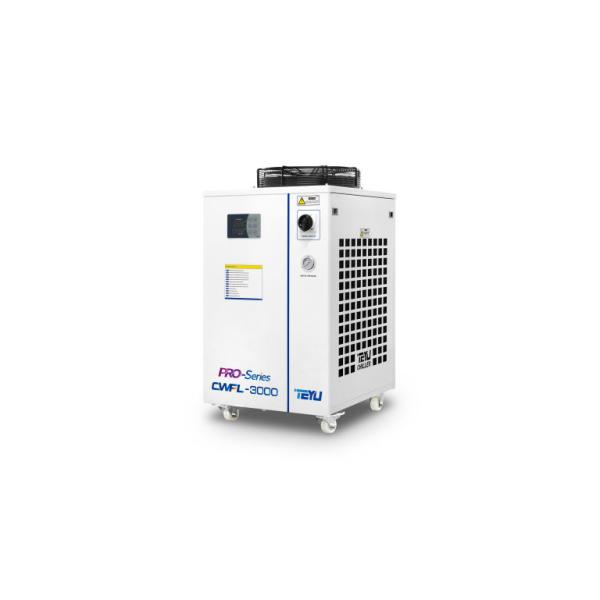

Recirculating Water Chiller CWFL-3000 for 3kW Fiber Laser Processing Machine
Product Description:
TEYU recirculating water chiller CWFL-3000 is made specifically for 3kW fiber laser processing machines. Thanks to the dual temperature control circuit inside the chiller, CWFL-3000 water chiller is able to regulate and maintain the temperature of two parts - the laser and the optics. Both the refrigeration circuit and the water temperature are controlled by the intelligent digital control panel.
Industrial water chiller CWFL-3000 is equipped with high performance water pump, which guarantees that water circulation between the chiller and the above-mentioned two heat-producing parts can be ongoing. Being Modbus-485 capable, this fiber laser chiller can realize the communication with the laser system.
Features:
* Dual cooling circuit
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* Intelligent digital control panel
* Integrated alarm functions
* Back mounted fill port and easy-to-read water level check
* RS-485 Modbus communication function
* High reliability, energy efficiency and durability
* Available in 380V or 220V
* SGS certified version is available
Technical Parameters:
| Model | CWFL-3000ANP | CWFL-3000BNP | CWFL-3000ENP |
| Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 3P 380V |
| Frequency | 50Hz | 60Hz | 50Hz |
| Current | 5~33.3A | 3.6~30.9A | 2.1~14A |
| Max. power consumption | 5.76kW | 6.05kW | 6.08kW |
| Heater power | 600W+1400W |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.75kW | 1kW | 0.75kW |
| Tank capacity | 22L |
| Inlet and outlet | Rp1/2”+Rp1” |
| Max. pump pressure | 5bar | 5.9bar | 5bar |
| Rated flow | 2L/min+＞30L/min |
| N.W. | 93Kg | 87Kg | 105Kg |
| G.W. | 109Kg | 103Kg | 121Kg |
| Dimension | 77X55X103cm (L X W X H) |
| Package dimension | 78X65X117cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
