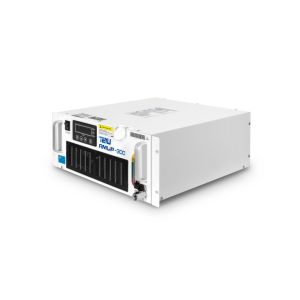

4U Rack Mount Water Chiller RMUP-300 for UV Laser Ultrafast Laser
Product Description:
TEYU rack mount water chiller RMUP-300 is only 4U tall and ideally suited for 3W-5W UV laser and ultrafast laser. It delivers extremely precise cooling of ±0.1°C stability with PID control technology and a cooling capacity of up to 380W. Being extremely temperature stable, RMUP-300 water chiller can satisfy your demanding laser processes.
Rack mount water chiller RMUP-300 incorporates standard features like highly durable water pump, high performance cooling fan and integrated front handles which allow for easy mobility. The water fill port and drain port are mounted in the front, which is very convenient to use. The refrigerant used complies with environmental standards. Small, lightweight, ultra-precise, space-saving, mini dimension for superior performance, RMUP-300 water chiller can realize all your imagination of a small laser cooling unit.
Features:
* Low tank water level detecting
* Low water flow rate detecting
* Over water temperature detecting
* Heating of the coolant water at low ambient temperature
* 12 types of alarm codes
Easy routine maintenance
* Toolless maintenance of dustproof filter screen
* Quick-replaceable optional water filter
* Equipped with RS485 Modbus RTU protocol
Technical Parameters:
| Medel | RMUP-300AH | RMUP-300BH |
| Voltage | AC 1P 220-240V | AC 1P 220-240V |
| Frequency | 50Hz | 60Hz |
| Current | 0.5~5A | 0.5~4.8A |
| Max. power consumption | 0.84kW | 0.9kW |
| Compressor power | 0.21kW | 0.27kW |
| 0.29HP | 0.36HP |
| Nominal cooling capacity | 1296Btu/h |
| 0.38kW |
| 326Kcal/h |
| Refrigerant | R-134a |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Pump power | 0.05kW |
| Tank capacity | 3L |
| Inlet and outlet | Rp1/2" |
| Max. pump pressure | 1.2bar |
| Max. pump flow | 13L/min |
| N.W | 19Kg |
| G.W | 21Kg |
| Dimension | 49 X 48 X 18cm (L X W X H) 4U |
| Package dimension | 59 X 53 X 26cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
