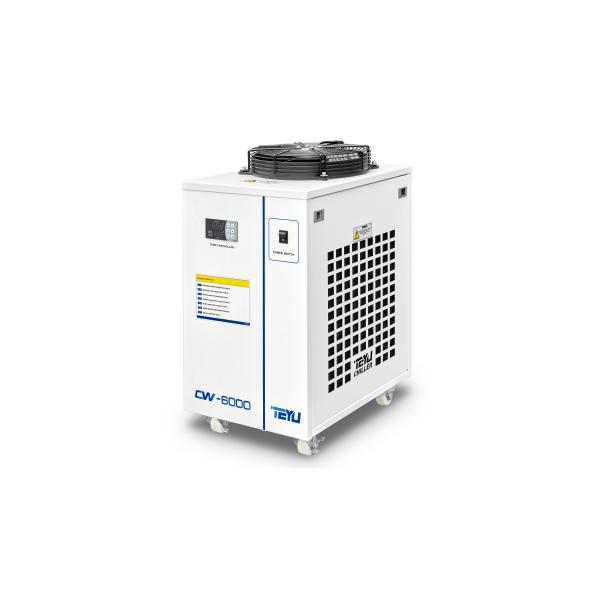

Industrial Process Water Chiller Cooling System CW-6000 with 3140W Cooling Capacity
Product Description:
TEYU water chiller cooling system CW-6000 developed by TEYU chiller manufacturer is programmed to perform high quality refrigeration for a wide variety of industrial, medical, analytical and laboratory applications. Proven 24/7 reliability, extremely high energy efficiency and durability set us apart in the refrigeration industry.
Industrial process water chiller CW 6000 offers 3140W cooling capacity while maintaining the temperature fluctuation at ±0.5°C. CW-6000 chiller incorporates a high quality compressor for optimum performance and less energy consumption. A user-friendly control panel allows you to set your desired temperature as needed or leave the water temperature automatically adjusting itself in the range of 5°C to 35°C.
Features:
* Cooling Capacity: 3140W
* Active cooling
* Temperature stability: ±0.5°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-410a
* User-friendly temperature controller
* Integrated alarm functions
* Back mounted water fill port and easy-to-read water level check
* Multiple power specifications
* High reliability, energy efficiency and durability
* Simple setup and operation
Technical Parameters:
| Model | CW-6000AH | CW-6000BH | CW-6000DH | CW-6000AI | CW-6000BI | CW-6000DI | CW-6000AN | CW-6000BN | CW-6000DN | | Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 1P 110V | AC 1P 220-240V | AC 1P 220-240V | AC 1P 110V | AC 1P 220-240V | AC 1P 220-240V | AC 1P 110V | | Frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz | | Current | 0.5~5.2A | 0.5~5.2A | 0.5~8.9A | 0.4~5.1A | 0.4~4.8A | 0.4~8.8A | 2.3~7A | 2.1~6.6A | 6~14.4A | | Max. power consumption | 1.08kW | 1.04kW | 0.96kW | 1.12kW | 1.08kW | 1kW | 1.4kW | 1.36kW | 1.51kW | | Compressor power | 0.94kW | 0.88kW | 0.79kW | 0.94kW | 0.88kW | 0.79kW | 0.94kW | 0.88kW | 0.79kW | | 1.26HP | 1.17HP | 1.06HP | 1.26HP | 1.17HP | 1.06HP | 1.26HP | 1.17HP | 1.06HP | | Nominal cooling capacity | 10713Btu/h | | 3.14kW | | 2699Kcal/h | | Pump power | 0.05kW | 0.09kW | 0.37kW | 0.6kW | | Max. pump pressure | 1.2bar | 2.5bar | 2.7bar | 4bar | | Max. pump flow | 13L/min | 15L/min | 75L/min | | Refrigerant | R-410a | | Precision | ±0.5℃ | | Reducer | Capillary | | Tank capacity | 10L | | Inlet and outlet | Rp1/2" | | N.W | 35Kg | 36Kg | 43Kg | | G.W | 44Kg | 45Kg | 52Kg | | Dimension | 59X38X74cm (L X W X H) | | Package dimension | 66X48X92cm (L X W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product. Applications:
* Laboratory equipment (rotary evaporator, vacuum system)
* Analytical equipment (spectrometer, bio analyzes, water sampler)
* Medical diagnostic equipment(MRI, X-ray)
* Machine tool (high speed spindle)
* Plastic molding machines
* Printing machine
* Furnace
* Welding machine
* Packaging machinery
* Plasma etching machine
* UV curing machine
* Gas generators
* Helium compressor (cryo compressors)
