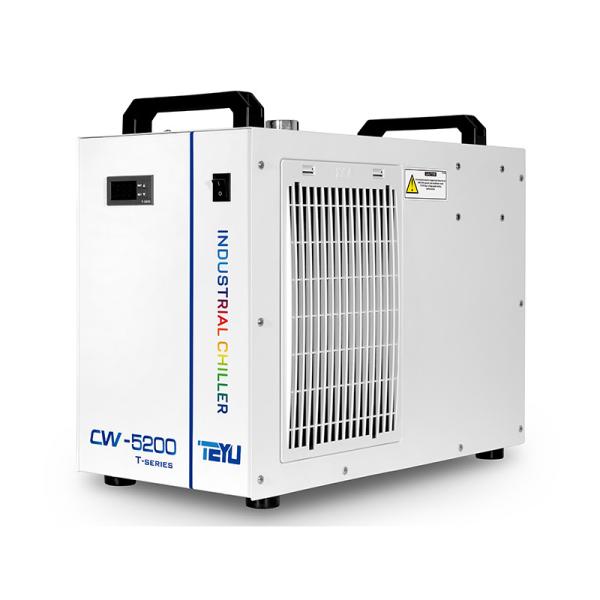

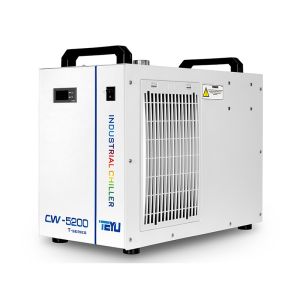

Industrial Chiller CW-5200 - Hot-selling Water Chiller Unit of TEYU Chiller Manufacturer
Industrial chiller CW-5200 stands out as one of the hot-selling water chiller units within the TEYU Chiller lineup. It features a small structure, compact footprint and lightweight design. Small though, CW-5200 industrial chiller has a cooling capacity of up to 1430W, while delivering a temperature precision of ±0.3℃. It's manufactured with premium evaporator, high-efficiency compressor, energy-efficient pump, and low-noise fan... Constant and intelligent temperature control modes are switchable for different needs. For safety operation, small industrial chiller CW-5200 is also equipped with multiple alarm protection functions. Rest assured, a 2-year warranty is supported. Being energy-saving, highly reliable and low maintenance, portable industrial water chiller CW-5200 is favored among many industrial processing professionals to cool their motorized spindle, CNC machine tool, CO2 laser, welder, printer, LED-UV, packing machine, vacuum sputter coaters, rotary evaporator, acrylic folding machine, etc.
Product Parameters
| Model | CW-5200THTY | CW-5200DHTY | CW-5200TITY | CW-5200DITY |
| Voltage | AC 1P 220~240V | AC 1P 110V | AC 1P 220~240V | AC 1P 110V |
| Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz |
| Current | 0.5~4.8A | 0.5~8.9A | 0.6~4.9A | 0.6~8.6A |
| Max. power consumption | 0.62/0.74kW | 0.79kW | 0.62/0.74kW | 0.79kW |
Compressor power | 0.49/0.61kW | 0.66kW | 0.49/0.61kW | 0.66kW |
| 0.65/0.81HP | 0.9HP | 0.65/0.81HP | 0.9HP |
Nominal cooling capacity | 4879Btu/h |
| 1.43kW |
| 1229Kcal/h |
| Pump power | 0.05kW | 0.09kW |
| Max. pump pressure | 1.2bar | 2.5bar |
| Max. pump flow | 13L/min | 15L/min |
| Refrigerant | R-134a | R-410a | R-134a | R-410a |
| Precision | ±0.3℃ |
| Reducer | Capillary |
| Tank capacity | 6L |
| Inlet and outlet | OD 10mm Barbed connector | 10mm Fast connector |
| N.W. | 25Kg | 24Kg | 25Kg | 23Kg |
| G.W. | 28Kg | 27Kg | 28Kg | 26Kg |
| Dimension | 58X29X47cm (L X W X H) |
| Package dimension | 65X36X51cm (L X W X H) |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Features
* Cooling Capacity: 1430W
* Active cooling
* Temperature stability: ±0.3°C
* Temperature control range: 5°C ~35°C
* Refrigerant:R-134a or R-410a
* Compact, portable design and quiet operation
* High efficiency compressor
* Top mounted water fill port
* Integrated alarm functions
* Low maintenance and high reliability
* 50Hz/60Hz dual-frequency compatible available
* Optional dual water inlet & outlet
* UL certified version available
Application
* CO2 laser (laser cutter, engraver, welder, marker, etc)
* Printing machine (laser printer, 3D printer, UV printer, inkjet printer, etc)
* Machine tool (high-speed spindle, lathes, grinders, drilling machines, milling machines, etc)
* Welding machine
* Packaging machinery
* Plastic molding machines
* Rotary evaporator
* Vacuum sputter coaters
* Acrylic folding machine
* Plasma etching machine
